Introduction

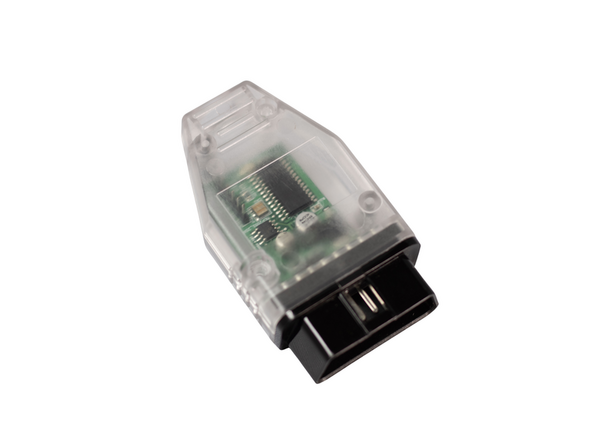

The 907OBDJ51 OBD programmer is used to activate the J51 option on 907 Chassis Mercedes Benz and Freightliner Sprinters MY 2019 - 2023
-
-
Press push to start button 2X (ignition on)
-
Verify that ignition is on by confirming that warning lights are illuminated on instrument cluster
-
-
-
Turn ignition off and plug OBD programmer into OBD port
-
-
-
Press push to start button 2X to turn ignition on
-
LED inside OBD programmer case (observable through hole at end of case facing in floor) should turn on
-
After programming is complete, LED on programmer will turn off
-
If LED is off and you have not seen it turn on, it likely has already programmer (programming can happen within seconds of turning ignition on)
-
-
-
Turn ignition off and remove OBD programmer
-
DO NOT START ENGINE OR DRIVE VEHICLE WITH OBD PROGRAMMER PLUGGED IN
-
The turn signal stalk (if moved) can be returned to the neutral position
-
To turn the J51 option OFF, put the turn signal stalk to the up position (right turn signal) and go through programming steps 1 through 4.
To turn the J51 option OFF, put the turn signal stalk to the up position (right turn signal) and go through programming steps 1 through 4.
