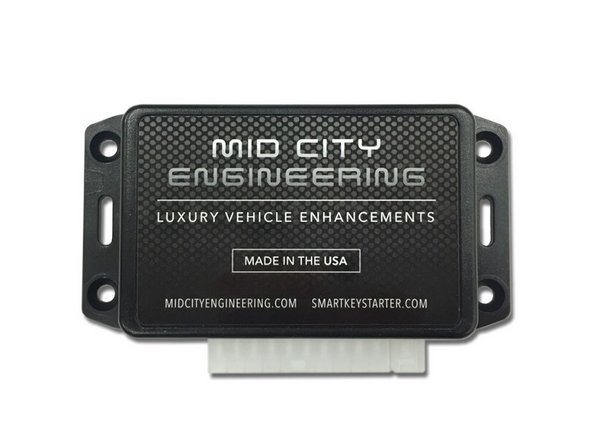

907SMRTG4I Stand-Alone Smart Idle for 2025-2026 Mercedes Sprinter

There is a battery quick disconnect that should be used to disconnect the chassis battery ground before performing this bypass

The battery disconnect instructions are for general reference only. For instructions and chassis specific details, refer to your vehicles owner manual before performing this disconnect.

The battery disconnect instructions are for general reference only. For instructions and chassis specific details, refer to your vehicles owner manual before performing this disconnect.

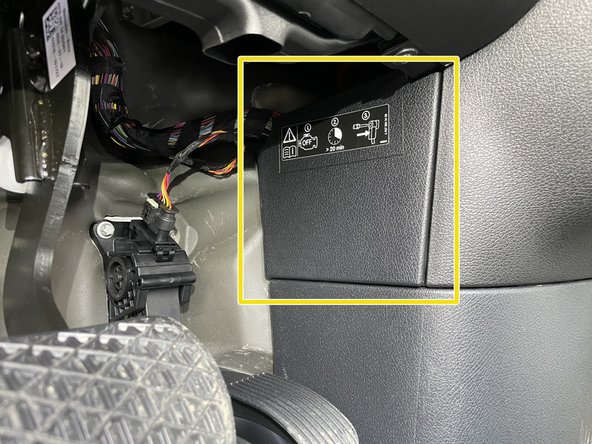

Remove access panel above and to the right of the accelerator pedal

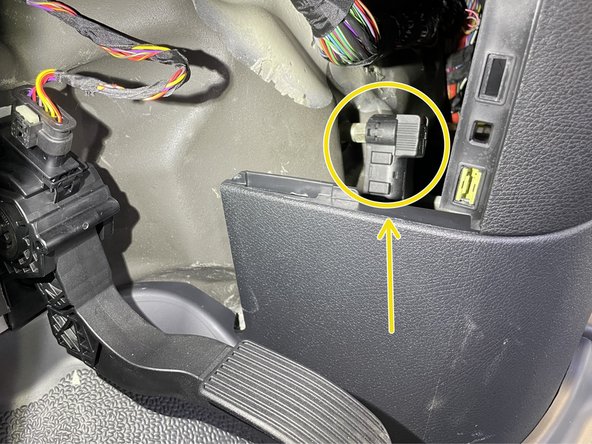

Battery disconnect is located under the driver side dash to the right of the accelerator pedal

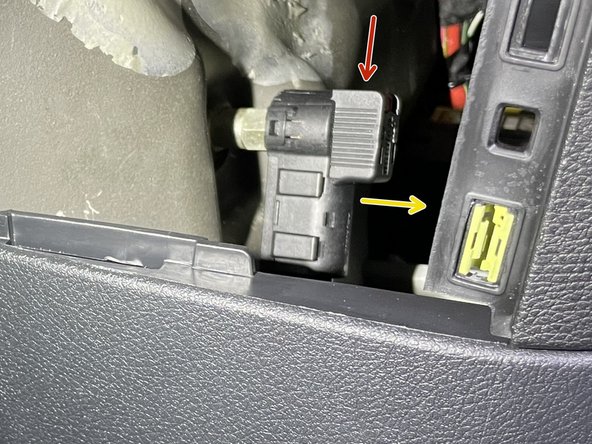

There is a red tab on the top of the disconnect cable. To release the cable from the post, the red tab needs to be pushed downward

Push the red tab downward to release the cable and pull towards the rear of the cable at the same time to remove cable from post

Carefully place battery disconnect cable to the side

If the vehicle is equipped with an OEM PSM, connect the 907SMRTG4I T-harness to the OEM harnessing and the OEM PSM module as shown

If the vehicle is not equipped with a PSM module, connect the OEM harnessing to the mating set of of plugs on the 907SMRTG4I harness and leave the other side of the harness disconnected

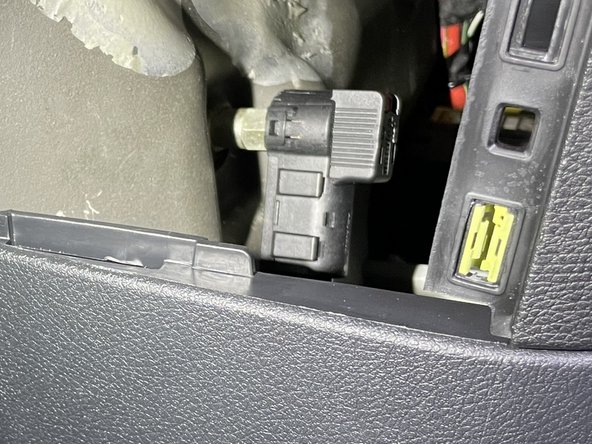

Reconnect battery disconnect cable from to post from step 2

Ensure that cable locks into place on post. You should feel the tab lock into place. Once connected, you should not be able to remove cable from post without pressing red tab downward

Replace access panel

The high idle option must be programmed using the supplied green and green/white CAN harness and the 907SMRTG4I module

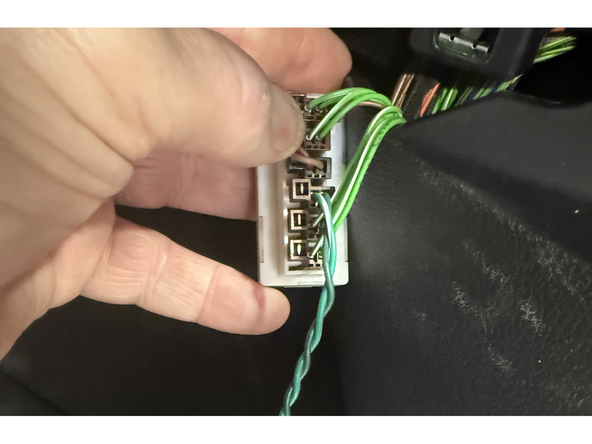

Under the passenger side dash, locate the CAN distribution block with OEM green and green/white wires

Connect supplied green and green/white CAN wires to any empty spot in the distribution block

With ignition off, green light on 907SMRTG4I module will turn on when programming CAN plug is connected

Note: this plug will be removed after programming is complete. Therefore the wiring harness does not need to be run behind the dash. Once the programming is complete, the harness can be coiled and safely mounted near the 907SMRTG4I module

Turn ignition on (but do not start engine) by pressing the push to start button 2X

Green LED on 907SMRTG4I module will flash

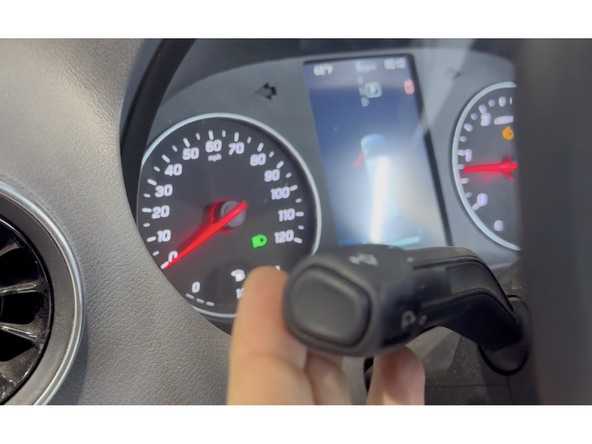

Pull high beam/turn signal stalk towards you and hold for 15 seconds. This will initiate the programming.

Once programming is complete, the green light on module will turn solid. Once green light is solid, programming is complete.

The supplied green and green/white CAN harness from distribution block may be disconnected, bundled up, and mount securely with the 907SMRTG4I module module (the programming harness does not need to stay plugged into the distribution block).

Securely mount 907SMRTG4I module underneath driver seat

Test high idle operation. Click here for the users manual for operating instructions
