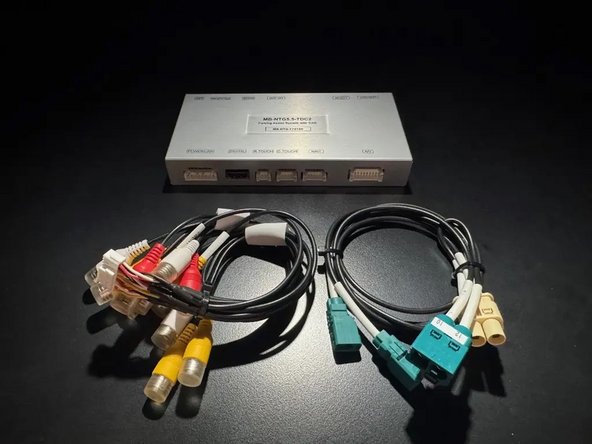

LVDS205

Major VersionM

by Noah Thatcher

    • Pull out silver trim piece on center console

    • Remove 2 screws from under center console trim piece

    • Remove control console and set aside

    • Remove 2 screws securing bars

    • Pull out radio

    • Remove latched plug from behind radio

    • Remove black 8 pin plug

    • Remove shroud from black plug

    • Connect T-harness to radio

    • Un-plug blue LVDS plug from radio (going to screen)

    • Connect to LVDS out on LVDS205 module

    • Using provided video cable, connect one end to video connector where plug was removed in step 5

    • Connect other end of cable to ‘LVDS IN’ port on LVDS205 module

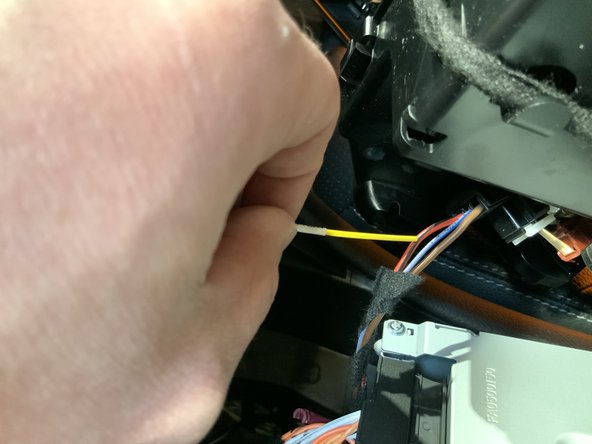

  1. Connect yellow wire to ignition power source at cigarette lighter
    • Connect yellow wire to ignition power source at cigarette lighter

    • Connect black wire to ground wire behind cigarette lighter

    • Connect main harness to LVDS module

    • Connect backup / front camera to appropriate input
