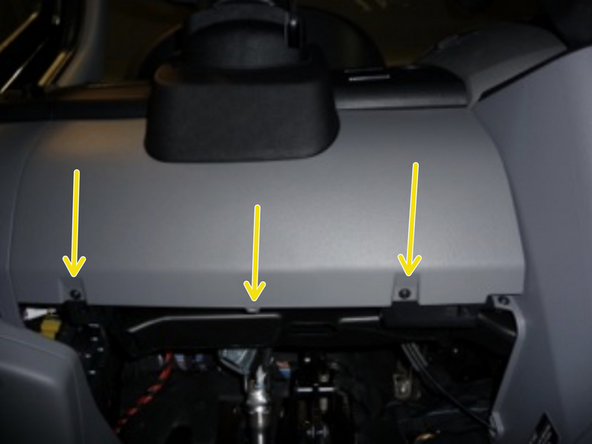

Remove (3) T25 screws from under dash panel
-

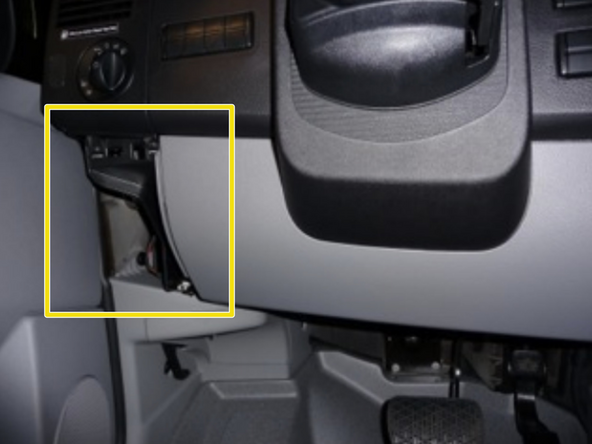

Pull the smaller left panel to release the upper clips and carefully set panel aside
-

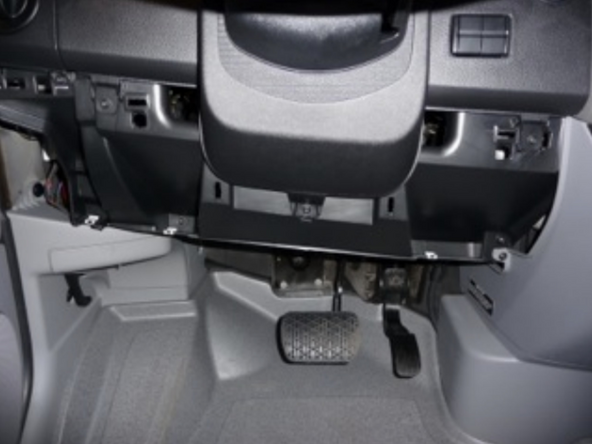

Pull the larger panel to release the upper clips and carefully set panel aside.
-
-
-
Using the EIS tool, unscrew the retaining ring for the ignition cylinder and set aside
-

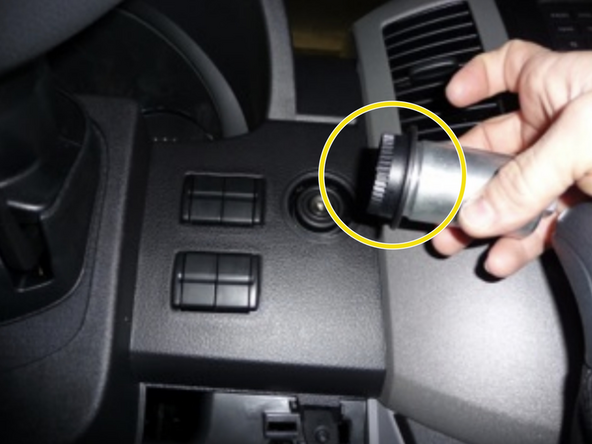

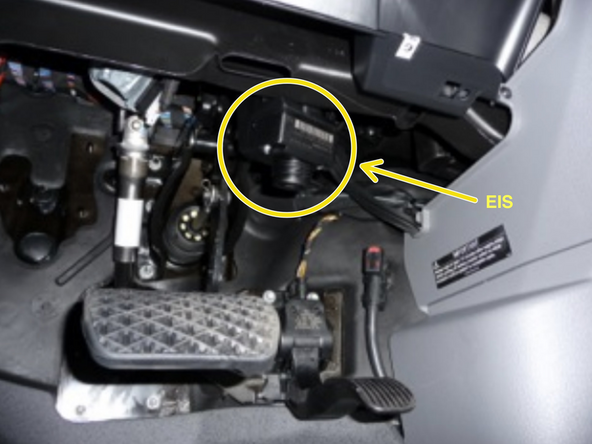

Reach up from the under dash and pull down the EIS module to access the wiring on the back of EIS
-
-
-

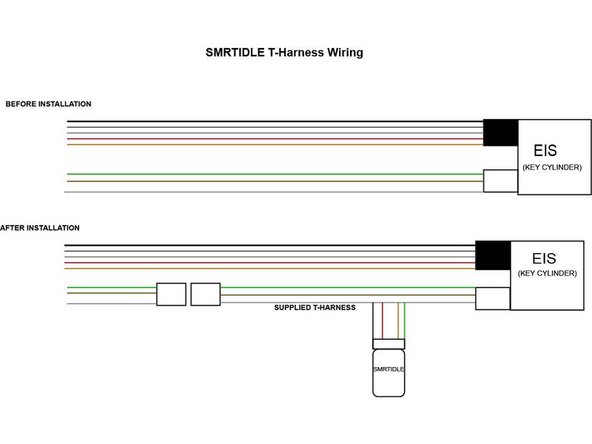

Disconnect white 8-pin plug from EIS
-

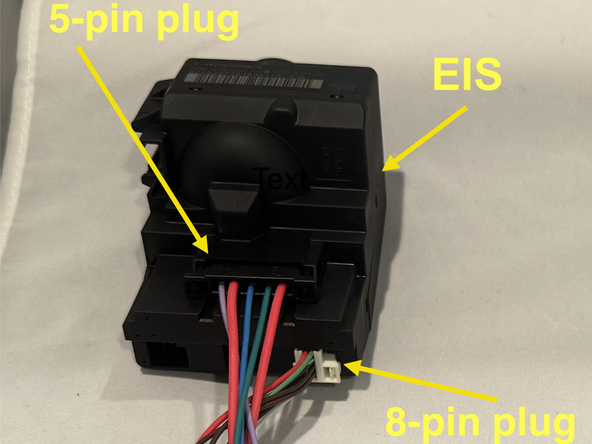

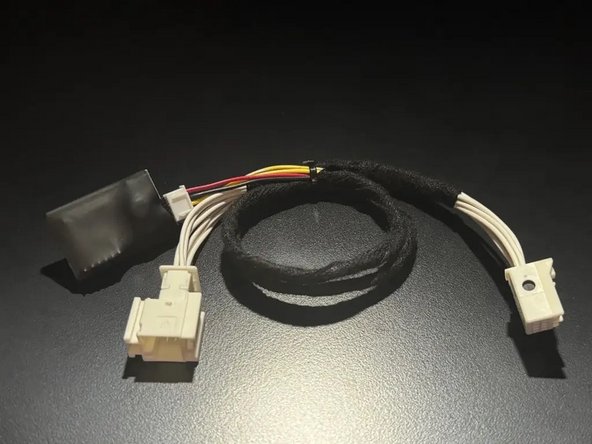

Connect OEM white 8-pin plug to mating 8-pin plug on SMRTIDLE T-harness
-
Connect 8-pin plug from SMRTIDLE T-harness to EIS where OEM 8-pin plug was removed
-
-
-
Start vehicle manually to verify vehicle is operating correctly and free from errors
-
If the vehicle does not start, check T-harness connections and make sure that module is plugged in. Check for power at the EIS
-
-
-

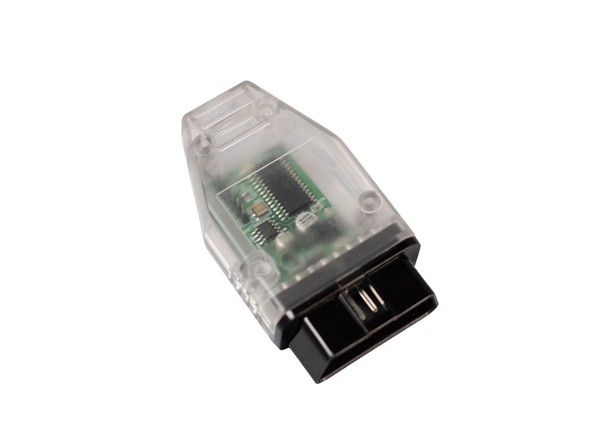

Use provided OBD programmer to program high idle. Click here for OBD programming instructions.
-
-
-
Test to confirm high idle is working properly. Click here user's manual and operating instructions
-
-
-

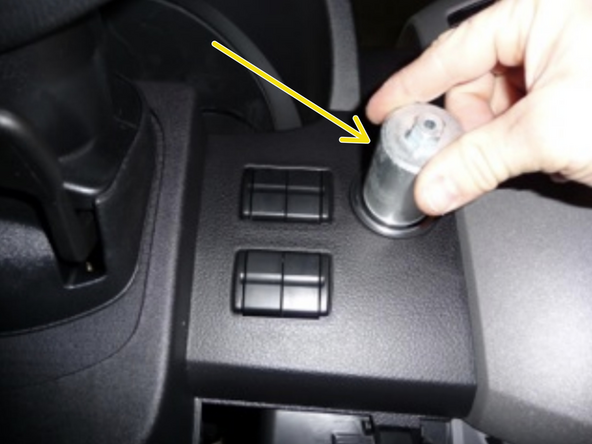

Re-install the EIS in dash
-
Screw on the retaining ring using EIS tool
-
-
-
Mount SMRTIDLE module safely and securely
-
Do not mount module or run wiring harness near any moving parts or heat sources.
-
Be careful not to mount modules or run harness near steering column or foot pedals.
-
-
-
Re-install dash panels and screws
-
