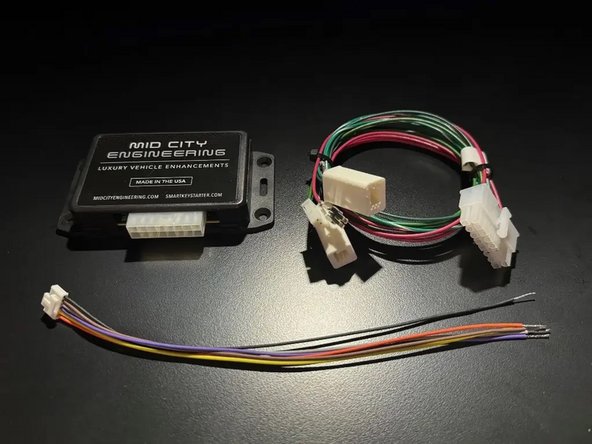

Using pry tool, remove panel at end of knee bolster
-
-
-
Remove two screws and panel and end of footwell
-
-
-
Turn plastic screws in counter clockwise
-
Remove panel
-
Pull back floor and remove fuse access panel
-
-
-
Pull back plastic floor
-
Remove one screw holding sill panel in place
-
-
-
Remove 2 plastic panel tabs
-
-
-
Pull back floor and remove sill panel
-
-
-
Remove bolt near door opening
-
Connect ring terminal from provided black wire on post
-
Replace bolt and tighten
-
-
-

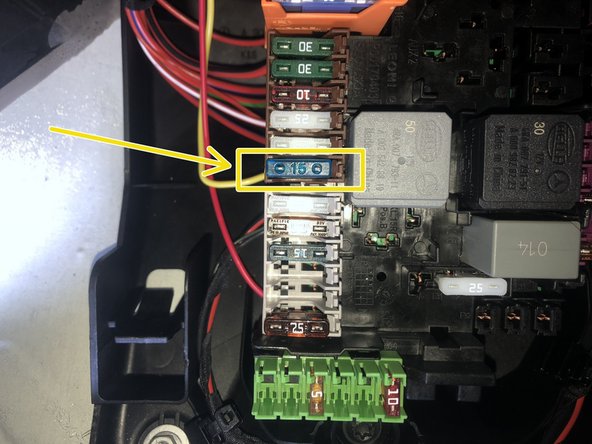

The WIGWAG harness comes with a red power lead terminating at a fuse holder terminal. This fuse will pin into the fuse box under the passenger floor
-
Remove provided fuse and route empty fuse holder terminal through underside of fuse box and insert into one side of fuse location marked on picture left (yellow wire in picture). This is constant power.
-
From top of the fuse box connect provided fuse to fuse holder terminal
-
-
-

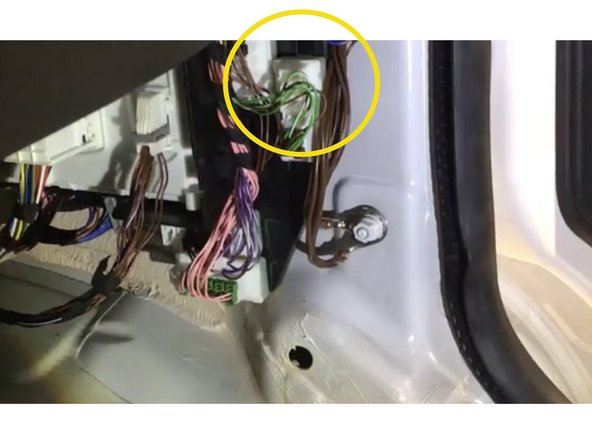

Locate CAN distribution block below the A pillar with ‘’'green and green/white’'' wires
-
-
-
Connect provided 2-pin white CAN plug into any empty spot in the block
-
Note: if the entire block is populated (no empty spots), skip to next step and come back to this step after
-
-
-
Press push to start button 1X to turn on ACC
-
Note: if there was no empty spot in block, remove one plug from distribution block and replace with provided 2-pin CAN connector
-
Once the provided plug is connected to block, yellow and green lights on module will flash
-
Remove plugs from the block one at a time and connect to the provided male receptacles until both yellow and green lights are solid
-
-
-
Insulate all ends of 6-pin pigtail
-
Connect 6-pin pigtail to white 6-pin port on WIGWAG module
-
To activate the lights, there are two different negative inputs
-
To activate the lights with a fast cadence, ground the gray wire
-
To activate the lights with a slower cadence, ground the purple wire
-
