Porsche CAN locations for MAXINT Escort Radar Integration
Use wire locations and colors below to connect MAX-INT CAN high / low to specified OEM CAN high / low.
Mid City Engineering MAX-INT CAN wires
CAN high = Purple
Note: occasionally CAN high will be blue on the MCE MAX-INT harness
CAN low = Orange
MAXINTP11
911 2012-2016

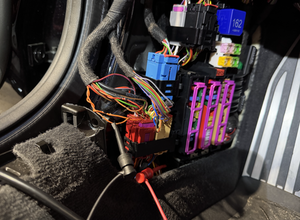

- Gateway control unit above drivers footwell area, red plug.
CAN high = Orange/Purple
CAN low = Orange/Brown
Boxster 2012-2016
- Gateway control unit above drivers footwell area, red plug
CAN high = Orange/Purple
CAN low = Orange/Brown
Cayenne 2011-2017
- Gateway control unit above drivers footwell area, red plug
CAN high = Orange/Purple
CAN low = Orange/Brown
Cayman 2012-2016
- Gateway control unit above drivers footwell area, red plug
CAN high = Orange/Purple
CAN low = Orange/Brown
Macan 2014-2016
- Gateway control unit under rear bench seat
CAN high = Orange/Purple
CAN low = Orange/Brown
Panamera 2010-2016
- Gateway control unit behind drivers rear c-pillar
CAN high = Orange/Purple
CAN low = Orange/Brown
MAXINTP29
911 2017-2018 (model 991)
- Gateway control unit above drivers footwell area, red plug
CAN high = Orange/Purple
CAN low = Orange/Brown
Cayman 2017-2020
- Gateway control unit above drivers footwell area, red plug
CAN high = Orange/Purple
CAN low = Orange/Brown
Boxster 2017-2020
- Gateway control unit above drivers footwell area, red plug
CAN high = Orange/Purple
CAN low = Orange/Brown
Macan 2018-2025 (before wide screen refresh)
*Red plug in driver's footwell area
*or
- Gateway control unit under rear bench seat
CAN high = Orange/Purple
CAN low = Orange/Brown
MAXINTP29V2
911. 2019 (model 991.2)
- Recommended location is behind the instrument cluster. Click here for disassembly videos and picture of CAN wires.
Note: There may be CAN wires that can be used in the driver side kick, red plug- however sometimes they do not work on these vehicles.
CAN high = Purple
CAN low = Orange/Brown
Cayenne 2018-2020
*Gateway control unit under drivers seat
CAN high = Purple
CAN low = Orange/Brown
Panamera 2017-2020
- Gateway control unit underneath drivers seat
CAN high = Purple
CAN low = Orange/Brown
MAXINTP29V3
911 2019-2021 (model 992)
- Recommended location is behind the instrument cluster. Click here for disassembly videos and picture of CAN wires.
Note: There may be CAN wires that can be used in the driver side kick, red plug- however sometimes they do not work on these vehicles.
CAN high = Purple
CAN low = Orange/Brown
Cayenne 2021
- Gateway control unit underneath drivers seat
CAN high = Black
CAN low = Orange/Brown
MAXINTP29V4
Taycan 2020-2022
- Driver side kick area, red plug
CAN high = Blue
CAN low = Orange/Brown
MAXINTP29V5

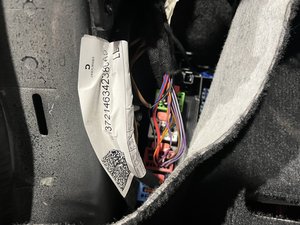

- Driver side kick area, red or tan plug
CAN high = Orange/Purple, Blue or Purple
CAN low = Orange/Brown
