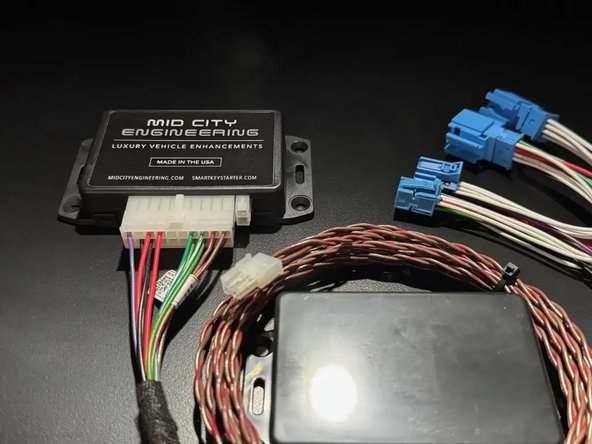

SKSNG197D3 SmartKey Starter® Installation Manual

Written By: Mid City Support
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

13

Time Required

01:00:00 - 02:00:00

Introduction

The SKSNG197D3 is a remote start and alarm interface.

Out of the box the remote start will working using the OEM key fob (1X press of the panic button or Lock-Unlock-Lock, if no panic button on key)

Vehicle Compatibility:

  • Mercedes SLS 2011-2014

The SKSNG197D3 is compatible with the following add-ons:

  • Any current Compustar Drone Smart Phone Control (X1, X2, LTE, MAX, XC)
  • Compustar DAS II digital sensor for shock, tilt, glass break, and tow sensing (uses OEM horn for alarm)
  • Compustar RF antenna and remotes (NON-AM remotes only, AM remotes NOT compatible)
  • Directed Smart Start
  • Compustar external remote start + alarm brain (eg, CM900, CMX). Note: RS232 4-pin to 4-pin data cable with RX and TX reversed on one end required for external alarm
  • Compustar KeyLocker
  • Compustar KP2 touch pad (KeyLocker or Compustar CM required)

The installation to the vehicle involves the following:

  • T-harness connection behind the EIS (electronic ignition switch)
  • Keyless Go jumper harness
  • Optional accessories and add-ons

There is no flashing required for this installation, but options settings can be programmed using the instrument cluster menu. See user's manual (link below) for options settings. Please go through menu to make sure settings such as run time are set to preferred setting.

Click Here for User's Manual

DO NOT MOUNT THE MODULE NEAR ANY HEAT SOURCES IN THE VEHICLE. SPECIFIC LOCATIONS TO AVOID ARE THE HEATER CORE ANDTHE TRANSMISSION TUNNEL

See end of guide for troubleshooting error codes

Tools

No tools specified.

Parts

    • Access EIS module under center console

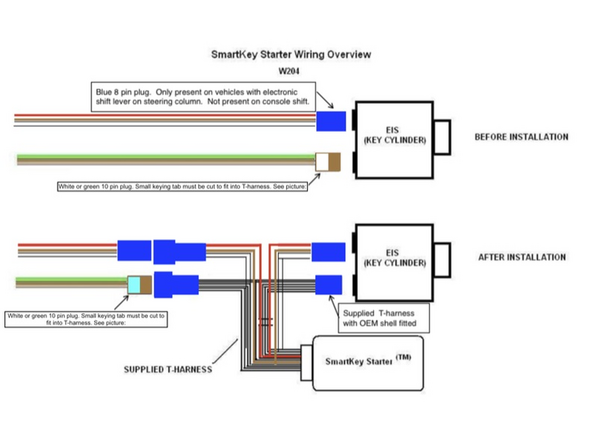

  2. The 10-pin green or white connector will need to be modified slightly to fit into the T-harness. See pictures There is a small keying tab on the top of the connector. Using a small cutting tool, carefully cut off the keying tab flush with the shell of the connector. See pictures. Plug the modified blue or green 10-pin plug into the blue male 10-pin plug on the SKS T-harness

    • The 10-pin green or white connector will need to be modified slightly to fit into the T-harness. See pictures

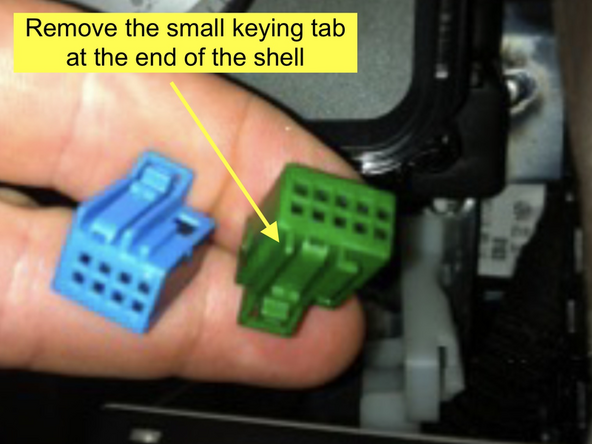

    • There is a small keying tab on the top of the connector. Using a small cutting tool, carefully cut off the keying tab flush with the shell of the connector. See pictures.

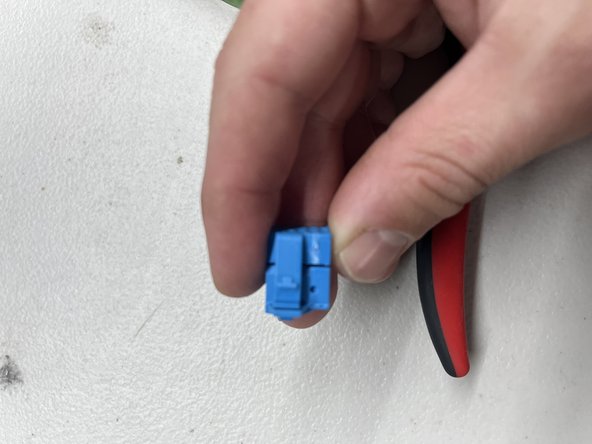

    • Plug the modified blue or green 10-pin plug into the blue male 10-pin plug on the SKS T-harness

    • Unplug the blue 8-pin connector from rear of EIS

    • Connect female blue 10-pin from T-harness to rear of EIS where green or white plug was removed

    • Connect female blue 10-pin from T-harness to rear of EIS where green or white plug was removed

    • If there is a keying tab in the way on the SmartKey Starter® T-harness 10-pin plug, it is OK to remove that tab as was done on OEM plug

    • Connect blue female 8-pin connector from T-harness to rear of EIS where blue 8-pin factory plug was removed.

    • Start vehicle manually to verify vehicle is operating correctly and free from errors

    • If the vehicle does not start, check T-harness connections and make sure that module is plugged in. Verify that LEDs on SmartKey Starter module are on

    • The SKSNG197D3 has a harness with twisted brown and brown/red wires terminating to a white 2-pin plug on one end and a black 8-pin plug on the other end (KG harness). These are for the Keyless Go connection.

    • The Keyless Go harness connects to the OEM Keyless Go module located behind the passenger seat, near EIS

    • Connect provided KG harness to 2-pin white plug on SmartKey Starter module labeled KG and remove push to start button

    • Locate 8-pin plug at EIS with brown and brown/red wires

    • Disconnect 8-pin plug from Keyless Go module and remove shroud

    • Insert shroud over provided Keyless Go harness

    • Plug provided Keyless Go harness into Keyless Go module

    • Make sure that push to start button is inserted in the EIS. If button is not in the ignition, the remote start will not work and it will produce error code 9 (9 parking light flashes)

    • Attempt to remote start by pressing the panic button 1X on the OEM key fob

    • If the vehicle is not equipped with a panic button, use LOCK-UNLOCK-LOCK sequence from OEM fob to remote start

    • Vehicle should remote start

    • If remote start fails, count the number of parking light flashes to determine the error code. The parking lights will flash between 4X and 10X (this is the error code) and may be followed by a short pause and then 3X flashes for shutdown. The first set of flashes determines the error code. See bottom of guide for troubleshooting error codes.

    • Vehicle can be shut down from the OEM key by either pressing the panic button or LOCK-UNLOCK-LOCK command

    • Remote start vehicle. Once vehicle is started, to perform key takeover press the push to start button 1X (without your foot on the brake)

    • Parking lights will flash 3X and vehicle can be shifted into gear

    • Remote start vehicle

    • Once vehicle has remote started, press the brake pedal and confirm that vehicle shuts down

    • Open hood

    • Attempt remote start. Remote start should fail and produce error code 7 (7 parking light flashes)

    • Remote start vehicle

    • While vehicle is running under remote start, make sure that you can lock and unlock the door using the outside door handle (Keyless Go) with the key on your person

    • Compustar Drone: Connect to the GRAY 4-Pin port labeled DRONE on the SmartKey Starter module.

    • Directed Smart Start: Connect 4-pin D2D cable from Smart Start to white 4-pin port labeled D2D on the SmartKey Starter module. Cut and insulate blue and green data wires (leaving only black and red for power and ground.

    • Connect 3-pin ESP plug from Smart Start to 3-pin white plug on SmartKey Starter labeled Smart Start. Do not ground gray wire from Smart Start.

    • Compustar DAS II sensor: Connect to 4-pin RED port labeled SENSOR on the SmartKey Starter module

    • Compustar RF remotes: Connect Compustar antenna to 4-pin BLUE port on the SmartKey Starter module labeled 4PANT

    • AM remotes are NOT supported

    • Compustar remote programming: Cycle key from off to ignition 5X- parking lights will flash 1X after the 5th cycle. After the 5th cycle, press the button on the antenna (if antenna has a button) and press LOCK on each Compustar remote. Parking lights will flash when each remote is paired. Parking lights will flash 2X when exiting programming

    • Directed RF remotes: to add Directed remotes, a Directed XL202 RF to data converter must be used. Connect the XL202 to the 4 pin white plug labeled D2D on the SmartKey Starter module. Connect Directed RF antenna to XL202 and follow XL202 programming instructions

    • Compustar Alarm/Remote start module: an external alarm can be added using a Compustar Alarm/RS module (CM900, CMX, etc). To connect alarm use a RS232 cable. Plug one end of RS232 cable into BLACK port on CM and other end of RS232 cable into GRAY 4 pin port labeled DRONE on SmartKey Starter module

    • RS232 cable must have blue and white (RX and TX) wires reversed on one end of the cable. For example, if blue wire is in the outside pin position on one connector, it must be in the inside pin on the other side of the cable.

    • Connect power, ground, and ignition (with diode) wires from low current harness of Compustar CM. Constant power and ground can be wired to the SmartKey Starter T-harness

    • 12V ignition wire must have diode installed with stripe facing the Compustar CM module

    • Connect all accessories to CM module

    • Compustar KeyLocker and KP2: A KP2 Compustar touchpad can be connected using either a Compustar CM or a KeyLocker module. Connect KeyLocker to GRAY port labeled DRONE

    • Locate a place to secure the Smartkey Starter module and accessories

    • DO NOT mount the module on or near any heat sources or moving parts (eg, vents or steering column)

    • Secure the module(s) in its final location using zip ties

    • Reassemble dash and any panels removed running wires

    • The provided warning sticker must be installed in this location or your SmartKey Starter® warranty will be voided

    • Install provided warning sticker on intermediate panel covering OBD II plug access. The purpose of the sticker is to inform anyone working on the vehicle that the vehicle is equipped with a remote starter

    • Remote starter must be turned off (valet mode) any time the vehicle is being serviced or undergoing any diagnostic tests or parked in a location where it is not safe for the vehicle to start

Conclusion

Troubleshooting:

If vehicle receives the command, but fails to remote start, the parking lights will flash a # of times. The number of parking light flashes corresponds to an error code. To troubleshoot no remote start count the number of parking light flashes.

Note: after a brief pause, the error code may be followed by a shutdown sequence of 3X flashes after the initial code

Error codes:

4 Flashes: Valet mode. The remote start is in valet mode (remote start off). Click here for valet mode instructions using the instrument cluster menu.

5 Flashes: Maximum 5 remote start attempts exceeded or vehicle is not synced with the key.

Start vehicle manually and let run for at least 30 seconds.

Whenever the vehicle is started manually or ignition is turned on, be sure to leave the vehicle running or the ignition on for at least 30 seconds. If vehicle is started or ignition turned on and shut off in less than 30 seconds, it will result in error code 5 when trying to remote start. The system stores enough error codes for 5 remote start attempts before it needs to be synced with the key.

6 Flashes: Brake depressed. The vehicle sees that the brake is depressed. If the brake pedal is not pressed down, it is possible that the brake switch is out of alignment. Check brake switch above brake pedal. If brake switch is out of alignment, you may see brake lights on all the time when the vehicle is started.

7 Flashes: Hood open. The remote start will not work if the hood is open or latch is not fully closed.

8 Flashes: RPM overrev. Vehicle sees that RPM is too high.

10 Flashes: Communication error. Check connections and power cycle module.
